Supplementary simulation study

Decentralized Safe Path Following for Multiple Quadrotors on Intersecting Paths

Hamza Tariq and Adeel Akhtar GRaDS Lab, New Jersey Institute of Technology

The controller keeps every quadrotor on its assigned path while avoiding collisions at the crossings, by relaxing the along-path speed alone. This page carries the animations behind the paper's figures, the full three-controller comparison, and everything needed to reproduce them.

GitHub: code and data Comparison Reproduce the figures

Animations

Four quadrotors, intersecting nonplanar circles

Rendered in Drake at the speeds the paper reports, from starts one metre off path. Watch the crossings: each agent adjusts its speed along its own circle, and none of them steps off to do it. The dotted rings are the assigned paths.

isometric

from above

side on

Two quadrotors, intersecting nonplanar sinusoids

A second geometry with a different crossing angle, flown three times faster. The starts are staggered so both agents converge to their paths before they meet, and the separation requirement of 0.8 m between centres holds throughout the crossing.

isometric

from above

side on

0.5 mm

worst distance to the assigned path after convergence, against 40 cm and 71 cm for the two cascades

<10^-3 deg

worst heading error of the proposed controller, both scenarios

1.1×10^-13

largest residual on the three equalities that are never relaxed, whole run

steps at which the closed-form feasibility test failed, all runs reported

Scenarios

The two scenarios

Both are flown on the Drake physics engine, with a floating rigid body per quadrotor and quaternion attitude. The controller runs at 400 Hz and holds its input between updates. The circle scenario has twelve crossings, and at several of them an agent is constrained by up to three neighbours at once. The sinusoid scenario is a single staggered crossing, reached only after both agents have converged to their paths.

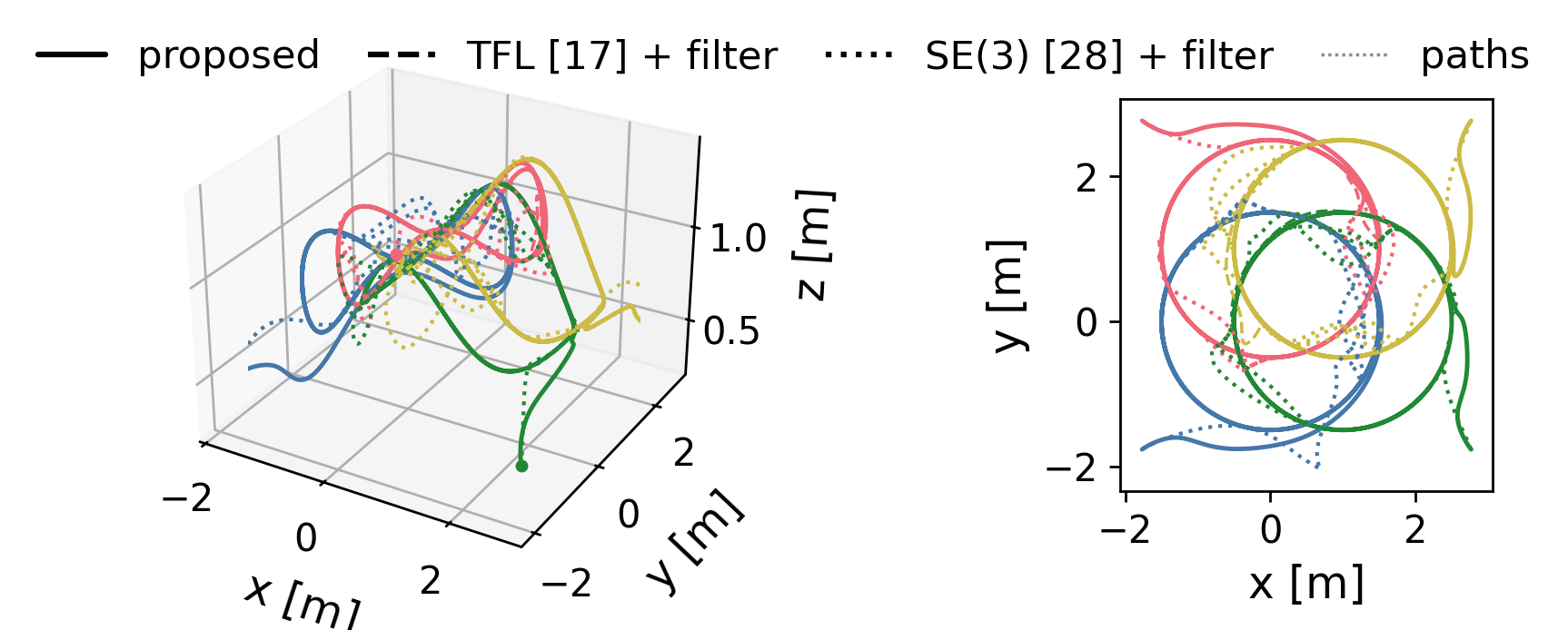

**Four quadrotors on intersecting circles.** Thin dotted curves are the assigned paths. The proposed trajectory (solid) lies on its path through every crossing; the TFL cascade (dashed) and the SE(3) cascade (dotted) leave theirs.

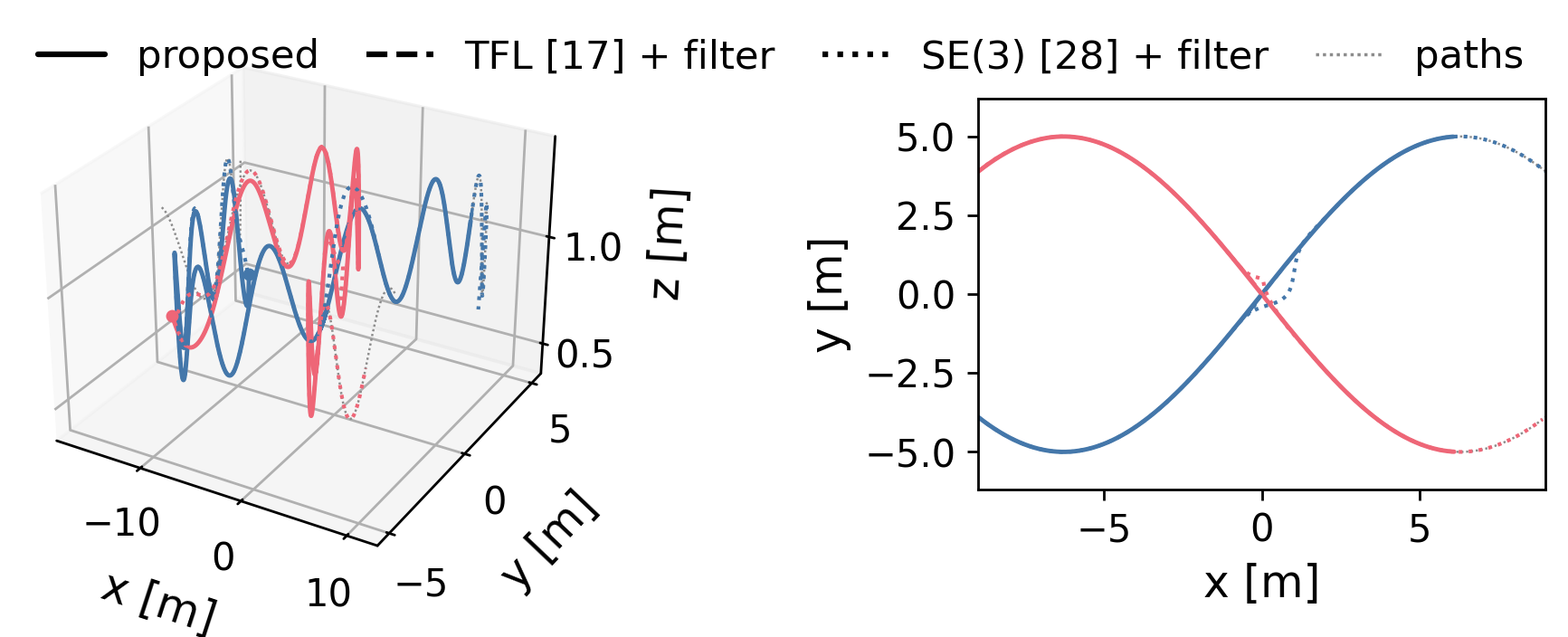

**Two quadrotors on intersecting sinusoids.** Both start off path, converge, and then negotiate the crossing at x = 0.

Comparison

Against two cascades

The first cascade passes the same nominal TFL controller through a full-input safety filter: nothing pins the transverse or heading rows, so the filter moves them. The second is the geometric controller on SE(3) with the same collision barrier filtered at acceleration level. Barrier poles, separation distance, desired speeds, initial conditions, and control rate are identical across the three.

stays on path

Proposed

Safety is spent on speed alone.

leaves path

TFL (Akhtar et al.) + safety filter

Nothing pins the transverse rows, so the filter moves them.

leaves path and heading

Geometric SE(3) (Lee et al.) + barrier filter

Avoidance is rebuilt into an attitude, which carries the heading with it.

Seen from above, the view where leaving a path is unmistakable. The same three controllers on the sinusoids:

stays on path

Proposed

leaves path

TFL (Akhtar et al.) + safety filter

leaves path and heading

Geometric SE(3) (Lee et al.) + barrier filter

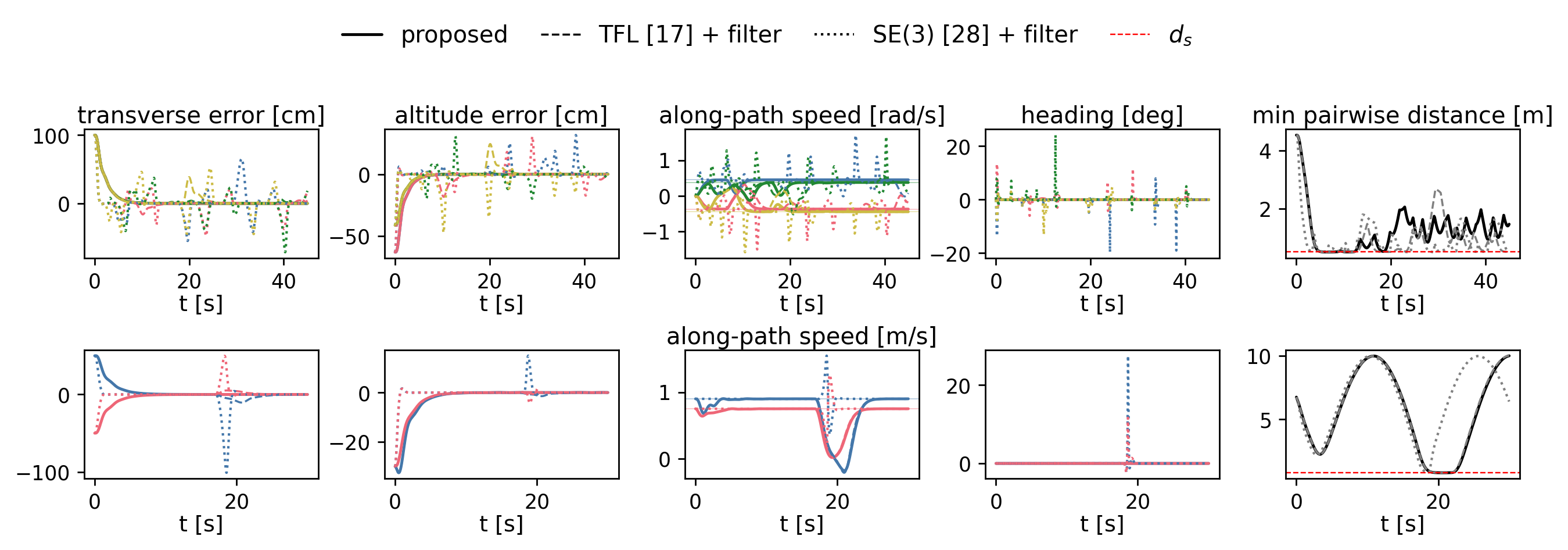

**Output channels and minimum pairwise distance** (top: circles; bottom: sinusoids). The proposed controller holds the transverse, altitude, and heading channels at their references and absorbs every conflict in the along-path speed. The minimum pairwise distance rides the separation boundary through the encounters.

After convergence, worst over agents	Proposed	TFL + filter	Geometric + filter
Four quadrotors, intersecting circles (measured from t = 15 s, run to 45 s)
Distance to the assigned path [cm]	0.04	39.9	71.5
Heading error [deg]	<1e-03	1.38	19.6
Closest pair distance [m]	0.5000	0.5000	0.4931
Two quadrotors, intersecting sinusoids (measured from t = 15 s, run to 40 s)
Distance to the assigned path [cm]	0.05	6.6	66.6
Heading error [deg]	<1e-03	0.030	27.5
Closest pair distance [m]	0.800	0.801	0.827

Green marks the better value in each row. The separation requirement is 0.5 m on the circles and 0.8 m on the sinusoids. The proposed controller and the TFL cascade hold it everywhere; the geometric cascade closes to 0.4931 m on the circles, 6.9 mm inside the boundary at the sampled instants. The proposed controller's reduced program stayed strictly feasible at every step of every run, its equality residual never exceeded 10^-13, and its collective thrust stayed above 18.5 N.

Parameters

Every parameter, for all three controllers

The comparison is only worth reading if the three controllers were given the same problem. These are the complete settings behind every figure on this page.

Shared plant and scenario

Parameter	Value
Mass m	1.923 kg
Inertia J	diag(1.152, 1.152, 2.18) × 10^-2 kg m²
Gravity g	9.8 m/s²
Control rate	400 Hz, zero-order hold
Integrator	Drake continuous plant, quaternion floating body
Separation d_s	0.5 m (circles), 0.8 m (sinusoids)
Circle radius R	1.5 m, centres (0,0), (0,1), (1,0), (1,1) m
Height field	z = 1 + 0.25 sin(2πx/3) m
Desired speeds, circles	(0.45, −0.375, 0.375, −0.45) rad/s (path-coordinate rate)
Sinusoid geometry	y = ±5 sin(0.25 x), same height field
Desired speeds, sinusoid	(0.9, 0.75) m/s (x-rate); starts x = (−16.2, −13.6), near-simultaneous crossing
Start	off path (1 m radial on circles, 0.5 m lateral on sinusoids), level attitude, hover thrust

Proposed controller

Parameter	Value
Transverse gains k_ξ	200, 400, 90, 30
Altitude gains k_ζ	100, 200, 60, 20
Speed gains	triple pole at −2: 8, 12, 6
Heading gains	10, 12
Cost weights	W = I₄, P = 100
Collision ECBF	quadruple real pole at −3.75
Attitude ECBF	four one-sided barriers, double pole at −10, margin ε = 0.1 rad
Responsibility	wⁱ = w^j = 1/2
Rows	N + 3: four attitude + (N − 1) collision
Solve	closed-form clipping of the reduced scalar program, no numerical solver in the loop

TFL with a full-input safety filter

Parameter	Value
Nominal feedback	the same transverse feedback linearization, by inversion
Filter	min ‖ν − ν_TFL‖² subject to the same barrier rows
Barrier rows	identical: four attitude + collision, same poles and weights
Difference from proposed	the hard equality is dropped, and there is no slack
Solve	OSQP through cvxpy, eps 10^-8, CLARABEL fallback

Geometric controller with a barrier filter

Parameter	Value
Position gains	k_x = 16 m, k_v = 5.6 m
Attitude gains	k_R = 8.81, k_Ω = 2.54
Reference	the same path, with the path coordinate advancing at the same desired speed
Filter	acceleration-level collision barrier, double pole at −3.75
Separation	0.5 m, as above

Reproduce

Reproducing this

Everything in the paper and on this page comes out of the GitHub repository, from the simulation code under sim/. The verification gates run first: they check the controller algebra over thousands of random states, validate the phase layer against finite differences, and cross-check the closed-form solve against a numerical QP and the assembled dynamics against direct symbolic differentiation. The six rollouts then write the state logs, the analysis script computes every number quoted in Section V of the paper, fig_paper_suite.py regenerates the paper's Figs. 2 and 3 together with the plots on this page, and drake_render.py renders the animations above. One command, bash reproduce.sh, runs the install, the gates, the rollouts, the metrics, and the figures end to end.

# set up
git clone https://github.com/gradslab/safe_multiquad_pf.git
cd safe_multiquad_pf/sim
pip install -r requirements.txt
python3 tests/test_layer.py
python3 tests/test_paper_port.py
python3 tests/test_oracle.py

# the six runs behind every number and figure
for c in "" "--controller baseline" "--controller se3"; do
  python3 experiments/run_circles.py --scenario circles --agents 4 --offpath \
          --tmax 45 --rate 400 --lam-pair 3.75 --tag _final2 $c
  python3 experiments/run_circles.py --scenario sine --agents 2 --offpath \
          --tmax 40 --rate 400 --ds 0.8 --tag _final2 $c
done

# metrics and figures
python3 experiments/analyze_paper_runs.py --tag _final2 --json results/paper_metrics_final2.json
python3 experiments/fig_paper_suite.py --tag _final2

# animations (Drake VTK renderer): three views per controller
for v in iso top side; do
  python3 experiments/drake_render.py --rate 400 --scenario circles --agents 4 \
          --tmax 45 --controller proposed --view $v --tag _$v
done

Citation

@unpublished{tariq_decentralized,
  author = {Hamza Tariq and Adeel Akhtar},
  title  = {Decentralized Safe Path Following for Multiple Quadrotors
            on Intersecting Paths},
  note   = {Under review},
  year   = {2026}
}
